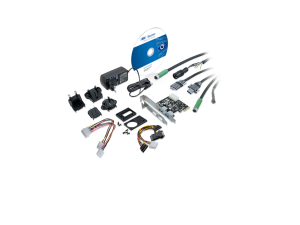

Starter Kits PXUxx Starter Kit

Technical data

fixing

article number

• 11002638

name

• Mounting Adapter Type A (Front)

features

• • easy front side camera mounting
  • robust anodized surface
  • stable lightweight metal design (aluminium, 18 g)

article number

• 11003060

name

• Mounting Adapter Type B (Tripod)

features

• • easy camera mounting
  • robust anodized surface
  • stable lightweight metal design (aluminium, 17g)
  • UNC ¼”- 20 thread for mounting (tripod thread)

cable

article number

• 11140628

name

• cable USB 3.0 die-cast MicB (screw)/A, 3,0 m (KSG U2/KSGU6GV0300G)

features

• • USB 3.0 interface cable with screwable Micro-B connector to USB 3.0 type A connector with screw lock option
  • both connectors with die-cast housing
  • length 3,0 m

process interface cable

article number

• 11118810

name

• shielded cable 8 wires, 5,0 m (Z-ESG 32FP0500G)

features

• • shielded cable
  • M8 female connector
  • 8-pin
  • open wires at one side
  • cable carrier compatible
  • length 5,0 m

interface card

article number

• 11141165

name

• USB3.0 2 Port PCIe Card (ZVA-PCIe_2x_external_USB_3.0)

features

• • 2 port USB 3.0 board
  • chipset: Renesas PD720202
  • tested bandwidth 2950Mbit/s
  • 1 lane PCIe plug board
  • tested driver version: Renesas 3.0.23.0

power supply

article number

• 11122415

name

• Power Supply Kit LX PX VCXG int.

features

• • power supply 12V/2.0A international with adapters for EU, US, UK, AU, KR and power supply and process interface adapter cable for LX, PX and VCXG cameras
  • length 5,0 m
