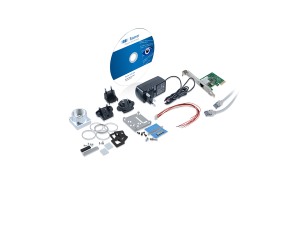

Starter Kits MXGxx Starter Kit

Technical data

C-mount kit

article number

• Mono: 11097369 Color: 11097380

name

• MX C-Mount Kit

components

• • C-mount adapter, sealings, screws, retaining bracket, spacers, cover glass and IR filter

cable

article number

• 10170048

name

• cable GigE RJ45/RJ45, 3,0 m

features

• • GigE cable
  • RJ45/RJ45
  • CAT7
  • length 3,0 m

heat sink kit

article number

• 11098288

name

• MXG Heat Sink Kit

components

• • Heat sink for MXG board level cameras incl. screws, retaining bracket and thermal conductive pads

process interface cable

article number

• 11098762

name

• cable 8 wires, 0,15 m (Z-ESG JSFV0015)

features

• • cable
  • JST crimp connector
  • female
  • 8-pin
  • open wires at one side
  • AWG32
  • length 0,15 m

interface card

article number

• 11137188

name

• PCIe Ethernet Server Adapter I210-T1 (ZVA-PCIe_Intel_Eth_Server_Adptr_I1210-T1)

features

• • 1 port GigE to PCI Express host adapter
  • RJ45 connector
  • chipset: Intel^® i210 Gigabit Controller
  • tested Jumbo Frames: 9 kByte
  • x1 lane interface

power supply

article number

• 11102189

name

• power supply 24V/1,0A int. MXG

features

• • power supply 24V/1,0A international for Baumer MX cameras
  • adapter for EU, US, UK, AU and KR
