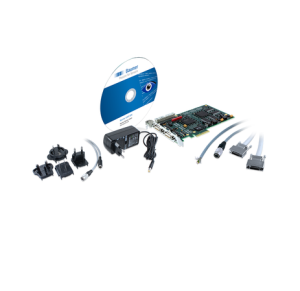

Starter Kits LXGxx Starter Kit

Technical data

fixing

article number

• 11003060

name

• Mounting Adapter Type B (Tripod)

features

• • easy camera mounting
  • robust anodized surface
  • stable lightweight metal design (aluminium, 17g)
  • UNC ¼”- 20 thread for mounting (tripod thread)

cable

article number

• 10170048

name

• 2x cable GigE RJ45/RJ45, 3,0 m

features

• • GigE cable
  • RJ45/RJ45
  • CAT7
  • length 3,0 m

process interface cable

article number

• 11004523

name

• cable 8 wires, 5,0 m (ESG 32FH0500)

features

• • cable
  • M8 female connector
  • 8-pin
  • open wires at one side
  • cable carrier compatible
  • length 5,0 m

interface card

article number

• 11168453

name

• PCI-1672PC Dual PoE (ZVA-PCIe-1672PC)

features

• • 2 port GigE to PCI Express host adapter
  • RJ45 connector
  • chipset: Intel^® I350-AM2
  • Power over Ethernet, IEEE 802.3af compliant, support class 0, 1, 2, 3, and 4, provides up to 15,4 Watt
  • tested Jumbo Frames: 9 kByte
  • Note: 4 lane PCI Express connector required

power supply

article number

• 11122415

name

• Power Supply Kit LX PX VCXG int.

features

• • power supply 12V/2,0A international with adapters for EU, US, UK, AU, KR and power supply and process interface adapter cable for LX, PX and VCXG cameras
  • length 5,0 m
