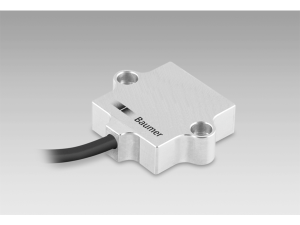

Inclination sensors GIM140R - 2-dimensional, analog

Technical data

Technical data - electrical ratings

Voltage supply

• 8...30 VDC
• 12...30 VDC

Reverse polarity protection

• Yes

Short-circuit proof

• Yes

Consumption typ.

• 8 mA (24 VDC, w/o load, voltage output)
• 12 mA (w/o load, current output)

Interface

• Analog (4...20 mA / 0.5...4.5 V / 0...10 V)

Load resistor

• Between Out/0 V ≥3 kΩ / voltage output
• 270 Ω at 10 VDC (500 Ω at 15 VDC) / current output

Measuring range

• ±10°/±30°/±45°/±60°

Resolution

• 0,05 °

Accuracy (+25 °C)

• ±0.4°

Sensing method

• MEMS technology

Interference immunity

• DIN EN 61000-6-2

Emitted interference

• DIN EN 61000-6-3

Programmable parameters

• Preset

Diagnostic function

• Out-of-range diagnostics

Technical data - mechanical design

Dimensions W x H x L

• 48 x 14 x 45 mm

Protection DIN EN 60529

• IP 67/IP 69K

Material

• Housing: aluminium, anodised

Corrosion protection

• ISO 9227:2017 salt mist according to ISO 12944-6:1998 (C5-M)

Operating temperature

• -40...+85 °C

Resistance

• DIN EN 60068-2-6 Vibration 10 g, 10-2000 Hz
• DIN EN 60068-2-27 Shock 50 g, 11 ms

Weight approx.

• 50 g

Connection

• Cable 0.3 m, radial
