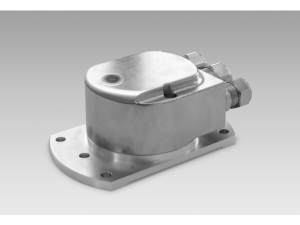

Inclination sensors GNAMG

Mã sản phẩm : GNAMG
Danh mục : Inclination sensors
Inclination sensor / CANopen® / Profibus Measuring range two-dimensional: ±15°, ±30°, ±60° Measuring range one-dimensional: 360° Resolution: 0.001° to 1° Accuracy: ±0.1° to 0.2° Programmable parameters Protection max. IP 67
Technical data
Technical data - electrical ratings
Voltage supply
  • 10...30 VDC
Interference immunity
  • DIN EN 61000-6-2
Emitted interference
  • DIN EN 61000-6-4
Approval
  • UL approval / E63076
Technical data - mechanical design
Protection DIN EN 60529
  • IP 66 (connector M12)
  • IP 67 (cable gland)
Material
  • Bus cover: zinc die-cast
  • Base plate: aluminium
Operating temperature
  • -25...+85 °C
  • -40...+85 °C (optional: only cable gland)
Relative humidity
  • 95 % non-condensing
Weight approx.
  • 250 g
Connection
  • Cable gland
  • Connector M12, 4-pin
  • Connector M12, 5-pin
