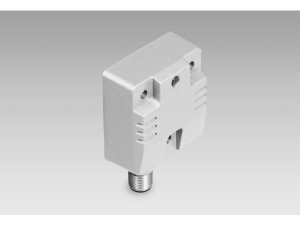

Inclination sensors GIM500R - 1-dimensional

Technical data

Technical data - electrical ratings

Voltage supply

• 8...36 VDC

Consumption w/o load

• ≤40 mA (24 VDC)

Initializing time

• ≤0,5 s after power on

Interface

• CANopen®
• SAE J1939
• Analog (4...20 mA / 0.5...4.5 V / 0...5 V / 0...10 V)

Interference immunity

• DIN EN 61000-6-2
• ECE Reg. No. 10R04
• ISO 7637-2
• ISO 11452-2 / ISO 11452-5

Emitted interference

• DIN EN 61000-6-4
• ECE Reg. No. 10R04
• ISO 7637-2 / EN 55025

Programmable parameters

• Preset and offset
• Filter

Diagnostic function

• Parameter error

Status indicator

• DUO-LED integrated in housing

Approval

• UL approval / E63076

Technical data - mechanical design

Protection DIN EN 60529

• IP 66
• IP 67
• IP 68
• IP 69K

Material

• Housing: aluminium, coated

Corrosion protection

• IEC 60068-2-52 Salt mist
• Complies to ISO 12944-5:1998 Protective paint systems (C5-M)

Operating temperature

• -40...+85 °C (see general information)

Resistance

• DIN EN 60068-2-6 Vibration 20 g, 60-2000 Hz
• DIN EN 60068-2-27 Shock 200 g, 6 ms

Weight approx.

• 95 g

Connection

• Flange connector M12, 8-pin
• Flange connector M12, 5-pin
• Cable 1 m
