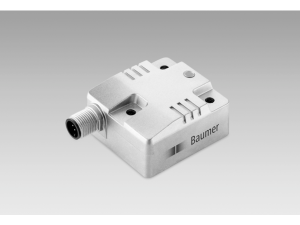

Inclination sensors GIM500R - 2-dimensional

Technical data

Technical data - electrical ratings

Voltage supply

• 8...36 VDC

Consumption w/o load

• ≤40 mA (24 VDC)

Initializing time

• ≤0,5 s after power on

Interface

• CANopen®
• SAE J1939
• Analog (4...20 mA / 0.5...4.5 V / 0...5 V / 0...10 V)

Interference immunity

• DIN EN 61000-6-2
• ECE Reg. No. 10R04
• ISO 7637-2
• ISO 11452-2 / ISO 11452-5

Emitted interference

• DIN EN 61000-6-4
• ECE Reg. No. 10R04
• ISO 7637-2 / EN 55025

Programmable parameters

• Preset and offset
• Filter

Diagnostic function

• Parameter error

Status indicator

• DUO-LED integrated in housing

Approval

• UL approval / E63076

Technical data - mechanical design
