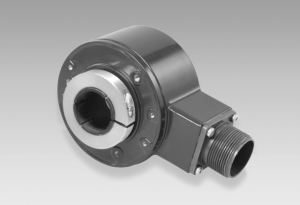

Incremental encoders HS35F

Technical data

Technical data - electrical ratings

Voltage supply

• 4.75...30 VDC

Reverse polarity protection

• Yes

Consumption w/o load

• ≤40 mA (24 VDC)
• ≤130 mA (4.75 VDC) + output load, max. 250 mA

Pulses per revolution

• 1024 … 80000

Accuracy

• ≤60 arc-seconds

Sensing method

• Optical

Output frequency

• ≤300 kHz (TTL)
• ≤160 kHz (HTL)
• ≤160 kHz (OC)

Output signals

• A, B, Z
• A, B, Z + complement, ½ cycle index gated with negative B channel

Output stages

• Linedriver (TTL, 7272) Vout = 5 V, short-circuit proof
• Push-pull (HTL, 7272) Vout = Vin, short-circuit proof
• Open Collector (OC, 7273) Vout = Vin, short-circuit proof

Interference immunity

• DIN EN 61000-6-2

Emitted interference

• DIN EN 61000-6-3

Approval

• UL approval / file no. E240061
• RoHS compliant EU guideline 2011/65/EC
• CE

Technical data - mechanical design

Size (flange)

• ø3.15" (ø80 mm)

Shaft type

• ø0.375...1" (ø9.525...25.4 mm) (through hollow shaft isolated)

Bore runout

• 0.0016" (0.04 mm) TIR max.

Admitted misalignment

• 0.004" (0.1016 mm) radial TIR (end of shaft)
• 0.01" (0.254 mm) axial

Protection DIN EN 60529

• IP 54
• IP 65
• IP 67

Operating speed

• ≤5000 rpm (see temperature diagram)

Bearing

• 52100 SAE high carbon steel (ABEC 5)

Starting torque

• ≤3 in-oz (77 °F, IP 65)
• ≤0,02 Nm (+25 °C, IP 65)

Rotor moment of inertia

• 2,3 oz-in² (420 gcm²)

Service life

• Bearing: typ. 13 billion rev. (89000 h/2500 rpm)

Material

• Housing: aluminium, powder-coated
• Shaft: stainless steel

Operating temperature

• -40...+212 °F (-40...+100 °C), (fixed cable): see temperature diagram

Relative humidity

• 98 % non-condensing

Resistance

• DIN EN 60068-2-6 Vibration 20 g, 60-2000 Hz
• DIN EN 60068-2-27 Shock 200 g, 6 ms

Connection

• MIL-connector, 7-pin
• MIL-connector, 10-pin
• Cable (AWG26 wire)

Weight approx.

• 23 oz.
• 660 g
