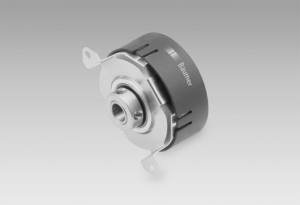

Absolute encoders EFL360-B

Technical data

Technical data - electrical ratings

Voltage supply

• 5 VDC ±10 %

Consumption w/o load

• ≤100 mA

Interface

• BiSS C

Function

• Singleturn

Steps per turn

• 21 bit

Telegram

• 21 bit + error + warning

Telegram + CRC

• 23 bit + 6 bit CRC

Processing time

• ≤ 7 µs

Sensing method

• Optical

Code

• Gray or binary

Measuring range temperature sensor

• -40...+125 °C (PCB temperature)

Accuracy temperature sensor

• ±7 °C

Interference immunity

• EN 61000-6-2 (when installed)

Emitted interference

• EN 61000-6-3 (when installed)

Approval

• CE

Technical data - mechanical design

Size (flange)

• ø36 mm

Shaft type

• ø6 mm (blind hollow shaft)

Protection DIN EN 60529

• IP 20

Operating speed

• ≤6000 rpm (mechanical) (higher on request)

Starting torque

• ≤0,2 Ncm

Rotor moment of inertia

• 4 gcm²

Material

• Flange: aluminium

Operating temperature

• -20...+115 °C

Relative humidity

• 98 % non-condensing

Resistance

• IEC 60068-2-6 Vibration 10 g, 16-2000 Hz
• IEC 60068-2-27 Shock 100 g, 6 ms

Weight approx.

• 42 g

Connection

• IllumiMate™ PCB connector 6-pin
