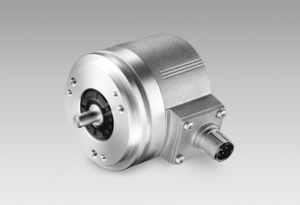

Incremental encoders EIL580P-SY - synchro flange

Technical data

Technical data - electrical ratings

Voltage supply

• 4.75...30 VDC

Reverse polarity protection

• Yes

Short-circuit proof

• Yes

Consumption w/o load

• ≤70 mA

Initializing time

• ≤30 ms after power on

Pulses per revolution

• 1 … 65536

Duty cycle

• 45…55 % typical at 1024, 2048 ppr (further see table Duty cycle)

Reference signal

• Zero pulse 90° or 180°

Sensing method

• Optical

Output frequency

• ≤300 kHz (TTL)
• ≤160 kHz (HTL)

Output signals

• A+, B+, R+, A-, B-, R-

Output stages

• TTL/RS422
• HTL/push-pull

Programmable parameters

• Output level TTL/HTL
• Pulse number 1...65536
• Zero pulse width 90°/180°
• Zero pulse position
• Signal sequence

Interference immunity

• DIN EN 61000-6-2

Emitted interference

• DIN EN 61000-6-3

Approval

• UL 508 / CSA 22.2

Technical data - mechanical design

Size (flange)

• ø58 mm

Shaft type

• ø6 x 10 mm, solid shaft with flat (synchro flange)

Admitted shaft load

• ≤40 N axial|≤80 N radial

Protection DIN EN 60529

• IP 65 (without shaft seal)
• IP 67 (with shaft seal)

Operating speed

• ≤6000 rpm (+20 °C, IP 67)|≤12000 rpm (+20 °C, IP 65)

Starting torque

• ≤0,015 Nm (+20 °C, IP 65)|≤0,02 Nm (+20 °C, IP 67)

Material

• Housing: aluminium die-cast
• Flange: aluminium
• Solid shaft: stainless steel

Operating temperature

• -40...+100 °C

Relative humidity

• 90 % non-condensing

Resistance

• DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz
• DIN EN 60068-2-27 Shock 300 g, 6 ms

Connection

• Flange connector M12, 8-pin
• Flange connector M23, 12-pin
• Cable

Weight approx.

• 300 g
