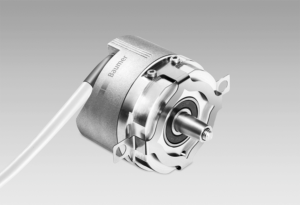

Absolute encoders EFL580 - BiSS C

Technical data

Technical data - electrical ratings

Voltage supply

• 5 VDC ±10 % (please consider the voltage drop on the supply cable)

Reverse polarity protection

• Yes

Consumption w/o load

• ≤50 mA

Interface

• BiSS C
• SinCos

Function

• Singleturn

Steps per turn

• 8192 / 13 bit

Sensing method

• Optical

Code

• Binary

Incremental output

• 2048 sinewaves A, B, sine 1 Vpp

Interference immunity

• DIN EN 61000-6-2

Emitted interference

• DIN EN 61000-6-4

Approval

• UL approval / E63076

Technical data - mechanical design

Size (flange)

• ø58 mm

Shaft type

• ø9.25 mm cone shaft (1:10)

Protection DIN EN 60529

• IP 64

Operating speed

• ≤6000 rpm (electric)

Rotor moment of inertia

• 20 gcm²

Material

• Housing: aluminium
• Flange: aluminium

Operating temperature

• -25...+105 °C

Relative humidity

• 95 % non-condensing

Resistance

• DIN EN 60068-2-6 Vibration 30 g, 16-2000 Hz
• DIN EN 60068-2-27 Shock 200 g, 3 ms

Weight approx.

• 620 g (5 m cable)
• 940 g (Option: 10 m cable)

Connection

• Cable 5 m with D-SUB, 15-pin
• Option: cable 10 m
