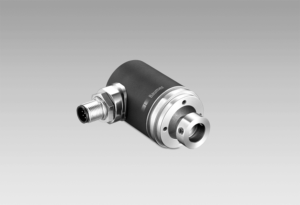

Absolute encoders EAM360R - Kit CANopen®/SAE J1939 - MAGRES

Technical data

Technical data - electrical ratings

Voltage supply

• 10...30 VDC

Consumption typ.

• 20 mA (24 VDC, w/o load)

Initializing time

• ≤170 ms after power on

Interface

• CANopen®
• SAE J1939

Function

• Multiturn
• Singleturn

Profile conformity

• CANopen® CiA communication profile DS 301, LSS Profil DSP 305, device profile DS 406

Steps per turn

• ≤16384 / 14 bit

Number of turns

• ≤262144 / 18 bit

Absolute accuracy

• ±0,15 ° (+20 ±15 °C)
• ±0,25 ° (-40...+85 °C) (see info working distance)

Sensing method

• Magnetic

Code sequence

• CW: ascending values with clockwise sense of rotation; looking at flange

Output stages

• CAN-Bus, LV (3.3 V) compatible ISO11898

Interference immunity

• DIN EN 61000-6-2
• ISO 11452-2:2012* / -5:2002*
• ISO 7637-2:2011*
• ISO 10605:2008 + Amd 1:2014 (CD ±8 kV / AD ±15 kV)
• * Severity level according to ECE R10 (Rev. 4)

Emitted interference

• DIN EN 61000-6-4 CISPR 25:2008 (30..1000 MHz)
• ISO 7637-2:2011*
• * Severity level according to ECE R10 (Rev. 4)

Technical data - mechanical design

Size (flange)

• ø36 mm

Shaft type

• ø6 mm (magnet bore)
• ø8 mm (magnet bore)
• ø12 mm (magnet bore)

Protection DIN EN 60529

• IP 67

Operating speed

• ≤6000 rpm

Working distance

• 1,1 ±0.9 mm axial / ≤0.3 mm eccentricity

Material

• Housing: steel, powder-coated
• Flange: aluminium

Corrosion protection

• IEC 60068-2-52 Salt mist
• Complies to ISO 12944-5:1998 Protective paint systems (C5-M)

Operating temperature

• -40...+85 °C (see general information)

Relative humidity

• 95 %

Resistance

• DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz
• DIN EN 60068-2-27 Shock 500 g, 1 ms

Weight approx.

• 170 g

Connection

• Flange connector M12, 5-pin
• Cable 2 m
