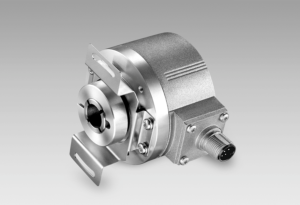

Incremental encoders ExEIL580P-B - blind hollow shaft

Technical data

Technical data - electrical ratings

Voltage supply

• 4.75...30 VDC

Reverse polarity protection

• Yes

Short-circuit proof

• Yes

Consumption w/o load

• ≤70 mA

Initializing time

• ≤30 ms after power on

Pulses per revolution

• 1 … 65536

Duty cycle

• 45…55 % typical at 1024, 2048 ppr (further see table Duty cycle)

Reference signal

• Zero pulse 90° or 180°

Sensing method

• Optical

Output frequency

• ≤300 kHz (TTL)
• ≤160 kHz (HTL)

Output signals

• A+, B+, R+, A-, B-, R-

Output stages

• TTL/RS422
• HTL/push-pull

Programmable parameters

• Output level TTL/HTL
• Pulse number 1...65536
• Zero pulse width 90°/180°
• Zero pulse position
• Signal sequence

Interference immunity

• DIN EN 61000-6-2

Emitted interference

• DIN EN 61000-6-3

Approval

• UL 508 / CSA 22.2

Technical data - mechanical design

Size (flange)

• ø58 mm

Shaft type

• ø8...15 mm (blind hollow shaft)

Motor shaft tolerance

• ±0,2  mm axial
• ±0,03  mm radial

Protection DIN EN 60529

• IP 65

Operating speed

• ≤8000 rpm (+20 °C)
• ≤8000 rpm (+40 °C)
• ≤5000 rpm (+60 °C)

Starting torque

• ≤0,02 Nm (+20 °C)

Material

• Housing: aluminium die-cast
• Flange: aluminium

Ambient temperature

• -20...+60 °C

Relative humidity

• 90 % non-condensing

Resistance

• DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz
• DIN EN 60068-2-27 Shock 250 g, 6 ms

Explosion protection

• II 3 D Ex tc IIIC T135°C Dc X (dust): see special conditions “X”

Connection

• Flange connector M12, 8-pin
• Flange connector M23, 12-pin
• Cable

Weight approx.

• 300 g
