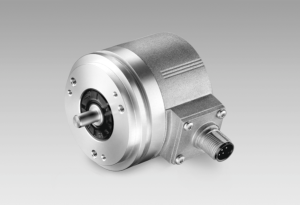

Incremental encoders ExEIL580-SY - synchro flange

Technical data

Technical data - electrical ratings

Voltage supply

• 5 VDC ±5 %
• 8...30 VDC
• 4.75...30 VDC

Reverse polarity protection

• Yes

Short-circuit proof

• Yes (HTL)
• Yes (TTL, max. 1 s and 1 signal)

Consumption w/o load

• ≤70 mA

Pulses per revolution

• 100 … 5000

Phase shift

• 90 ° ±10°

Duty cycle

• 40…60 %

Reference signal

• Zero pulse, width 90° ±10 %

Sensing method

• Optical

Output frequency

• ≤300 kHz (TTL)
• ≤160 kHz (HTL)

Output signals

• A+, B+, R+, A-, B-, R-

Output stages

• TTL/RS422
• HTL/push-pull

Interference immunity

• DIN EN 61000-6-2

Emitted interference

• DIN EN 61000-6-3

Approval

• UL 508 / CSA 22.2

Technical data - mechanical design

Size (flange)

• ø58 mm

Shaft type

• ø6 x 10 mm, solid shaft with flat (synchro flange)

Admitted shaft load

• ≤40 N axial
• ≤80 N radial

Protection DIN EN 60529

• IP 65

Operating speed

• ≤12000 rpm (+20 °C)
• ≤11000 rpm (+40 °C)
• ≤8000 rpm (+60 °C)

Starting torque

• ≤0,015 Nm (+20 °C)

Material

• Housing: aluminium die-cast
• Flange: aluminium
• Solid shaft: stainless steel

Ambient temperature

• -20...+60 °C

Relative humidity

• 90 % non-condensing

Resistance

• DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz
• DIN EN 60068-2-27 Shock 300 g, 6 ms

Explosion protection

• II 3 D Ex tc IIIC T135°C Dc X (dust): see special conditions “X”

Connection

• Flange connector M12, 8-pin
• Flange connector M23, 12-pin
• Cable

Weight approx.

• 300 g
