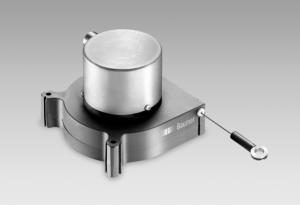

BMMS K34 analog - MAGRES redundant

Technical data

Technical data - electrical ratings

Voltage supply

• 8...30 VDC

Reverse polarity protection

• Yes

Short-circuit proof

• Yes

Consumption typ.

• 35 mA (24 VDC, w/o load)

Initializing time

• ≤500 ms after power on

Response time

• < 1 ms

Interface

• Analog 0...10 V / 0.5...4.5 V / 4...20 mA / Resolution: 12 bit

Function

• Linear position feedback

Linearity

• -0,55 … 0,55 % full scale output (f.s.o.)

Absolute accuracy

• ±1,03 % f.s.o. (+25 °C)
• ±1,32 % f.s.o. (-40...+85 °C)

Sensing method

• Magnetic

Repeatability typ.

• 5 mm

Interference immunity

• DIN EN 61000-6-2

Emitted interference

• DIN EN 61000-6-4

Programmable parameters

• Measuring range teachable

Diagnostic function

• Self-diagnosis
• Reading back voltage output

Factory setting

• Entire measuring range Min. output at 0 m Max. output at 3.4 m

Technical data - mechanical design

Protection DIN EN 60529

• IP 65 (encoder)

Material

• Encoder housing: aluminium
• Cable-pull housing: PA6 GF30
• Cable: Stainless steel cable coated with polyamide

Operating temperature

• -40...+85 °C

Service life

• Typ. >500000 strokes

Measuring length

• 3,4 m

Cable acceleration

• ≤50 m/s²

Cable diameter

• 0,8 mm

Pull-in force

• >3 N

Pull-out force

• ≤8 N

Relative humidity

• 95 % temporary condensing

Resistance

• DIN EN 60068-2-6 Vibration 10 g, 10-2000 Hz
• DIN EN 60068-2-27 Shock 50 g, 11 ms

Weight approx.

• 400 g

Connection

• Flange connector M12, 5-pin
• Flange connector M12, 8-pin
• Cable 2 m

Bending radius

• Cable: >55 mm

Special characteristics

• Coated electronic

Instruction

• Please consider the assembly instructions
