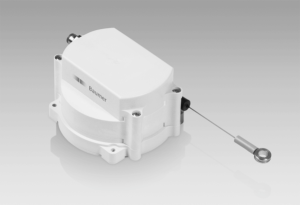

Cable transducer - absolute GCA5 - analog

Technical data

Technical data - electrical ratings

Voltage supply

• 8...30 VDC
• 12...30 VDC

Reverse polarity protection

• Yes

Short-circuit proof

• Yes

Consumption typ.

• 30 mA (24 VDC, w/o load, current output)
• 10 mA (24 VDC, w/o load, voltage output)

Initializing time

• ≤500 ms after power on

Interface

• Analog 0...10 V / 0.5...4.5 V / 4...20 mA

Load resistor

• Between Out/0 V ≥3 kΩ / voltage output
• 270 Ω at 10 VDC (500 Ω at 15 VDC) / current output

Function

• Linear position feedback

Resolution

• 12 bit

Linearity

• ±1 % full scale output (f.s.o.)

Absolute accuracy

• ±1,8 % f.s.o. (+25 °C)
• ±2 % f.s.o. (-40...+85 °C)

Sensing method

• Magnetic

Interference immunity

• DIN EN 61000-6-2

Emitted interference

• DIN EN 61000-6-3

Technical data - mechanical design

Protection DIN EN 60529

• IP 67 (housing, drainage holes closed)
• IP 54 (cable inlet)

Material

• Cable: Stainless steel cable AISI 316 coated with nylon PA12
• Housing: plastic

Operating temperature

• -40...+85 °C

Measuring length

• 4,7 m

Cable diameter

• 0,9 mm

Cable fastening

• Eyelet Height: 5 mm Internal diameter: 8 mm Outer diameter: 15 mm

Pull-in force

• >1,5 N (pull-in force reduced at low temperatures)

Pull-out force

• ≤8 N

Relative humidity

• 95 % non-condensing

Resistance

• DIN EN 60068-2-6 Vibration 10 g, 10-2000 Hz
• DIN EN 60068-2-27 Shock 50 g, 11 ms

Weight approx.

• 625 g

Connection

• Cable 2 m, radial
• Flange connector M12, 5-pin
• Flange connector M12, 8-pin

Instruction

• Please consider the assembly instructions
