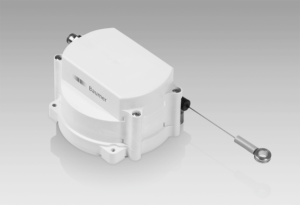

Cable transducer - absolute GCA5 - CANopen®

Technical data

Technical data - electrical ratings

Voltage supply

• 10...30 VDC

Consumption typ.

• 30 mA (24 VDC, w/o load)

Initializing time typ.

• 12 ms after power on

Interface

• CANopen®

Function

• Linear position feedback

Profile conformity

• CANopen® CiA DS 301, DS 406, DS 410

Measuring range

• Up to 4700 mm (position)
• 360° (angle)

Resolution

• 0,3 mm/step (position)
• 0,1 ° (angle)

Linearity

• ±0.5 % full scale output / f.s.o. (position)
• ±0.5 % f.s.o. (angle)

Absolute accuracy

• ±0,8 % f.s.o. (+25 °C / position)
• ±1,8 % f.s.o. (-40...+85 °C / position)
• ±0,5 % f.s.o. (angle)

Sensing method

• Magnetic

Code sequence

• Programmable

Interference immunity

• DIN EN 61000-6-2

Emitted interference

• DIN EN 61000-6-3

Programmable parameters

• Operating modes
• Rotating direction
• Scaling
• Zero position

Technical data - mechanical design

Protection DIN EN 60529

• IP 67 (housing, drainage holes closed)
• IP 54 (cable inlet)

Material

• Cable: Stainless steel cable AISI 316 coated with nylon PA12
• Housing: plastic

Operating temperature

• -40...+85 °C

Measuring length

• 4,7 m

Cable acceleration

• ≤50 m/s²

Cable diameter

• 0,9 mm

Cable fastening

• Eyelet Height: 5 mm Internal diameter: 8 mm Outer diameter: 15 mm

Pull-in force

• >1,5 N (pull-in force reduced at low temperatures)

Pull-out force

• ≤8 N

Relative humidity

• 95 % non-condensing

Resistance

• DIN EN 60068-2-6 Vibration 10 g, 10-2000 Hz
• DIN EN 60068-2-27 Shock 50 g, 11 ms

Weight approx.

• 625 g

Connection

• Cable 2 m, radial
• Flange connector M12, 5-pin

Instruction

• Please consider the assembly instructions
