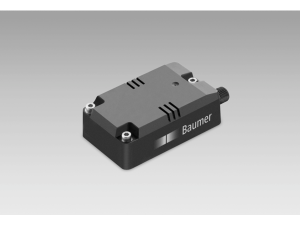

Acceleration sensors GAM900S

Mã sản phẩm : GAM900S

Danh mục : Vibration / acceleration sensors

Acceleration sensor for safety applications Safety limit monitoring with relay output according to SIL2/PLd Output of acceleration information via analog / CANopen® Redundante 3 axes detection, MEMS based Measuring range ±2 g Connection: connector M12, 12-pin Offshore capability (plastic housing)

Technical data

Safety-relevant key characteristics

Performance Level (ISO 13849)

Category (ISO 13849)

MTTFd (ISO 13849)

393 years

DCavg (ISO 13849)

86 %

TM (service life, ISO 13849)

20 years

Safety Integrity Level (IEC 61508 / EN 62061)

SIL2 / SIL CL2

PFHD (IEC 61508 / EN 62061)

2,5 E-09 1/h

PFDavg (IEC 61508)

2,1 E-04

Error reaction time

< 50 ms

Technical data - electrical ratings

Voltage supply

10...30 VDC

Interference immunity

DIN EN 61000-6-2
EN 61326-3-1

Emitted interference

DIN EN 61000-6-4

Approval

UL approval / E63076
PLd according to EN ISO 13849-1:2008+AC:2009 SIL CL2 according to EN 62061:2005 +AC:2010 +A1:2013 SIL2 according to IEC 61508-1..7:2010
Certified by TÜV Rheinland

Technical data - mechanical design

Dimensions W x H x L

55 x 30 x 90 mm

Protection DIN EN 60529

IP 67

Material

GAM900S-M: Aluminium
GAM900S-P: glass-fiber reinforced plastic

Operating temperature

-40...+75 °C

Weight approx.

200 g (plastic)
250 g (Aluminium)

Connection

Connector M12, 12-pin
