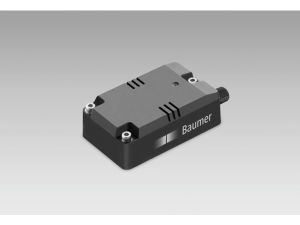

Acceleration sensors GAM900

Mã sản phẩm : GAM900

Danh mục : Vibration / acceleration sensors

Acceleration sensor / analog / CANopen® Up to two relay outputs for limit monitoring 3 axes detection, MEMS based Measuring range ±2 g Connection: connector M12, 12-pin Offshore capability (plastic housing)

Technical data

Technical data - electrical ratings

Voltage supply

10...30 VDC

Interference immunity

DIN EN 61000-6-2
EN 61326-3-1

Emitted interference

DIN EN 61000-6-4

Approval

UL approval / E63076

Technical data - mechanical design

Dimensions W x H x L

55 x 30 x 90 mm

Protection DIN EN 60529

IP 67

Material

GAM900-M: Aluminium
GAM900-P: glass-fiber reinforced plastic

Operating temperature

-40...+85 °C

Weight approx.

200 g (plastic)
250 g (Aluminium)

Connection

Connector M12, 12-pin
