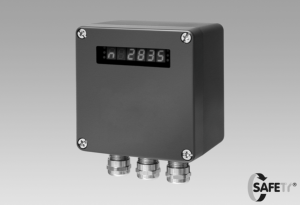

Speed switches DS 93

Technical data

Technical data - electrical ratings

Voltage supply

• 15...26 VDC

Consumption w/o load

• ≤200 mA

Switching accuracy

• 3 % (or Digit)

Switching outputs

• 3 outputs, speed control

Output switching capacity

• 12 VDC; ≤40 mA
• ≤40 mA

Switching delay time

• ≤40 ms

Inputs

• HTL
• TTL

Input signals

• K1, K2 + inverted

Interference immunity

• EN 61000-6-2

Emitted interference

• EN 61000-6-3

Approval

• CE

Technical data - mechanical design

Dimensions W x H x L

• 122 x 122 x 80 mm

Protection DIN EN 60529

• IP 65

Range of switching speed (ns)

• Pulses = 512: ±120...20000 rpm
• Pulses = 1024: ±60...10000 rpm
• Pulses = 2048: ±30...5000 rpm
• Pulses = 2500: ±25...4096 rpm

Operating temperature

• -20...+70 °C

Connection

• Connecting terminal

Material

• Housing: aluminium die-cast
