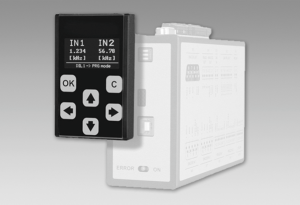

Display and programming unit GMI230S for GMM2xxS motion monitors

Technical data

Technical data

Dimensions

• 50 x 80 x 15 mm / 1.969 x 3.150 x 0.591 “

Mounting type

• Plug-on GMM2xxS

Voltage supply

• Directly via GMM2xxS motion monitor

Consumption

• ~100 mA

Protection

• Mechanical reverse polarity protection

Display

• 1.54" OLED display 128 x 64 pixels

Data memory

• Flash EEPROM, 1,000,000 cycles

Operation / keypad

• Touchscreen (6 capacitive touch-fields) Key tones (switchable mute)

Operating temperature

• -20...+55 °C (without dew)

Storage temperature

• -25...+70 °C (without dew)

Connection

• 8 position pin-strip

Weight approx.

• 50 g

Protection DIN EN 60529

• IP 20

Material

• Front: polycarbonate, black/yellow/clear, rear: polystyrene, black

Interference immunity

• EN 61000-6-2

Emitted interference

• EN 61000-6-3
• EN 61000-6-4

Approval

• CE
