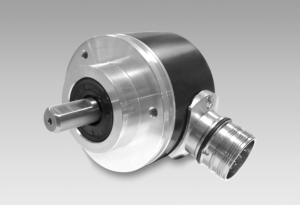

Resolvers RTD 1 B14 Y 3

Technical data

Technical data - electrical ratings

Number of pole pairs

• 1 = 2 poles

Input voltage Ui

• 7 Vrms

Input frequency

• ≤10 kHz

Input current Ii max.

• ≤65 mA

Transformation ratio

• 0.5 ±5 %

Phase shift

• 0 ° ±10°

Electrical error max.

• 10 Angular minutes

Interference immunity

• DIN EN 61000-6-2

Emitted interference

• DIN EN 61000-6-3

Technical data - mechanical design

Size (flange)

• ø58 mm

Shaft type

• ø10 mm solid shaft (clamping flange)

Protection DIN EN 60529

• IP 65 (IP 67 at shaft input)

Operating speed

• ≤5000 rpm

Starting torque

• ≤0,01 Nm (+20 °C)

Admitted shaft load

• ≤40 N axial
• ≤60 N radial

Material

• Housing: aluminium, black, powder-coated
• Shaft: stainless steel

Operating temperature

• -40...+100 °C

Resistance

• DIN EN 60068-2-6 Vibration 20 g, 60-2000 Hz
• DIN EN 60068-2-27 Shock 100 g, 11 ms

Weight approx.

• 310 g

Connection

• Connector M23 type 2, 12-pin
