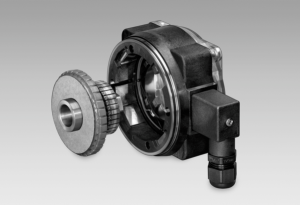

Tachogenerators GTB 9.16

Technical data

Technical data - electrical ratings

Reversal tolerance

• ≤0,1 %

Linearity tolerance

• ≤0,15 %

Temperature coefficient

• 0,05 %/K (open-circuit)

Isolation class

• B

Calibration tolerance

• ±5 %

Climatic test

• Humid heat, constant (IEC 60068-2-3, Ca)

Performance

• 0.3 W (speed ≥5000 rpm)

Armature-circuit time-constant

• <9 µs

Open-circuit voltage

• 60 mV per rpm

Interference immunity

• EN 61000-6-2

Emitted interference

• EN 61000-6-3

Approval

• CE

Technical data - mechanical design

Size (flange)

• ø95 mm

Shaft type

• ø12...16 mm (blind hollow shaft)
• ø17 mm (cone shaft 1:10)

Protection DIN EN 60529

• IP 68

Torque

• 0,35 Ncm

Rotor moment of inertia

• 0,95 kgcm²

Material

• Housing: stainless steel / plastic
• Shaft: stainless steel

Operating temperature

• -30...+130 °C

Resistance

• IEC 60068-2-6 Vibration 10 g, 10-2000 Hz
• IEC 60068-2-27 Shock 100 g, 6 ms

Weight approx.

• 0,7 kg

Connection

• Connector
