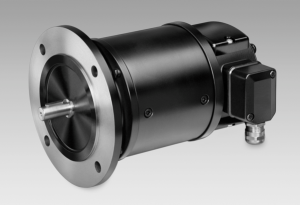

Tachogenerators TDP 13

Technical data

Technical data - electrical ratings

Reversal tolerance

• ≤0,1 %

Linearity tolerance

• ≤0,15 %

Temperature coefficient

• 0,05 %/K (open-circuit)

Isolation class

• B

Calibration tolerance

• ±3 %

Climatic test

• Humid heat, constant (IEC 60068-2-3, Ca)

Performance

• 40 W (speed ≥2000 rpm)

Armature-circuit time-constant

• <0,4 µs

Open-circuit voltage

• 20...200 mV per rpm

Interference immunity

• EN 61000-6-2

Emitted interference

• EN 61000-6-3

Approval

• CE

Technical data - mechanical design

Size (flange)

• ø120 mm
• ø165 mm
• ø175 mm

Shaft type

• ø14...18 mm solid shaft

Flange

• B5, B5k, B5s, B10 and B10w flange

Protection DIN EN 60529

• IP 55

Operating speed

• ≤6000 rpm

Torque

• 2,5 Ncm

Rotor moment of inertia

• 0,4 kgcm²

Admitted shaft load

• ≤80 N axial|≤100 N radial

Material

• Housing: steel
• Shaft: stainless steel

Operating temperature

• -30...+130 °C

Resistance

• IEC 60068-2-6 Vibration 10 g, 10-2000 Hz
• IEC 60068-2-27 Shock 100 g, 6 ms

Weight approx.

• 8,5 kg

Connection

• Terminal box
