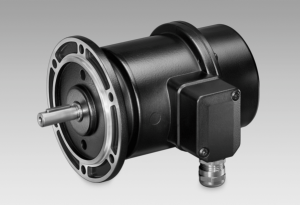

Tachogenerators TDP 0,2

Technical data

Technical data - electrical ratings

Reversal tolerance

• ≤0,1 %

Linearity tolerance

• ≤0,15 %

Temperature coefficient

• 0,05 %/K (open-circuit)

Isolation class

• B

Calibration tolerance

• ±1 %

Climatic test

• Humid heat, constant (IEC 60068-2-3, Ca)

Performance

• 12 W (speed ≥3000 rpm)

Armature-circuit time-constant

• <75 µs

Open-circuit voltage

• 10...150 mV per rpm

Interference immunity

• EN 61000-6-2

Emitted interference

• EN 61000-6-3

Approval

• CE

Technical data - mechanical design

Size (flange)

• ø115 mm

Shaft type

• ø11 mm solid shaft
• ø7 mm solid shaft (optional)
• ø14 mm solid shaft (optional)

Flange

• EURO flange B10
• Housing foot B3

Protection DIN EN 60529

• IP 55
• IP 56 (option)

Operating speed

• ≤10000 rpm

Torque

• 1,5 Ncm

Rotor moment of inertia

• 1,1 kgcm²

Admitted shaft load

• ≤60 N axial|≤80 N radial

Material

• Housing: aluminium die-cast
• Shaft: stainless steel

Operating temperature

• -30...+130 °C

Resistance

• DIN EN 60068-2-6 Vibration 10 g, 10-2000 Hz
• IEC 60068-2-27 Shock 300 g, 1 ms

Weight approx.

• 2,4 kg

Connection

• Terminal box
