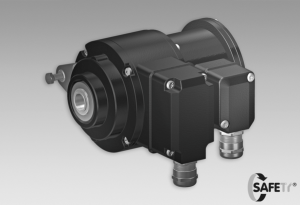

Incremental encoders - combination HOG 10-ESL 93

Technical data

Technical data - electrical ratings

Interference immunity

• EN 61000-6-2

Emitted interference

• EN 61000-6-3

Technical data - electrical ratings (encoder)

Voltage supply

• 9...30 VDC; 5 VDC ±5 %

Consumption w/o load

• ≤100 mA

Pulses per revolution

• 300 … 5000

Phase shift

• 90 ° ±20°

Duty cycle

• 40…60 %

Reference signal

• Zero pulse, width 90°

Output frequency

• ≤120 kHz
• ≤300 kHz (on request)

Output signals

• K1, K2, K0 + inverted
• Error output (only EMS)

Output stages

• HTL, TTL/RS422

Technical data - electrical ratings (speed switches)

Voltage supply

• 12 VDC ±10 %

Consumption w/o load

• ≤5 mA

Switching accuracy

• 4 % (≤1500 rpm)
• 2 % (>1500 rpm)

Switching hysteresis

• = 30 % of switching speed

Switching outputs

• 3 outputs, speed control

Current each output

• 40 mA (DC)

Switching delay time

• ≤40 ms

Technical data - mechanical design

Size (flange)

• ø105 mm

Shaft type

• ø16...20 mm (blind hollow shaft)
• ø17 mm (cone shaft 1:10)

Admitted shaft load

• ≤450 N axial, ≤600 N radial

Protection DIN EN 60529

• IP 66

Operating speed

• ≤5000 rpm

Range of switching speed (ns)

• 3x 200...5000 rpm

Operating torque typ.

• 6 Ncm

Rotor moment of inertia

• 680 gcm²

Material

• Housing: aluminium die-cast
• Shaft: stainless steel

Operating temperature

• -20...+85 °C

Resistance

• IEC 60068-2-6 Vibration 5 g, 10-2000 Hz
• IEC 60068-2-27 Shock 50 g, 6 ms

Corrosion protection

• IEC 60068-2-52 Salt mist
• Complies to ISO 12944-5:1998 Protective paint systems (C4)

Shaft insulation

• 2,8 kV

Transmission length

• ≤350 m at 100 kHz (HTL-P)
• ≤550 m at 100 kHz (TTL)

Connection

• 2x terminal box
• 3x terminal box (with option M)

Weight approx.

• 2,3 kg
• 2,5 kg (with option M)

Approval

• CE
