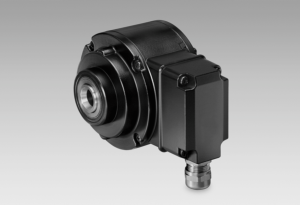

Sine encoders HOGS 100 S

Technical data

Technical data - electrical ratings

Voltage supply

• 5 VDC ±10 %
• 7...30 VDC

Consumption w/o load

• ≤90 mA

Sinewave cycles per turn

• 1024 … 5000

Phase shift

• 90 °

Reference signal

• Zero pulse, width 90°

Sensing method

• Optical

Output signals

• K1, K2, K0 + inverted

Output stages

• SinCos 1 Vpp

Difference of SinCos amplitude

• ≤20 mV

Harmonics typ.

• -50 dB

DC offset

• ≤20 mV

Bandwidth

• 250 kHz (-3 dB)

Function safety

• SS1, SS2, SOS, SLS, SDI, SLI according to EN 61800-5-2:2007

Safety operating figures

• Service life: 20 a PFH: 1,75 10^-7 1/h

Interference immunity

• EN 61000-6-2 EN 61326-3-1

Emitted interference

• EN 61000-6-3

EMC requirements

• EN 61800-3

Approval

• CE
• PL d / SIL2 approval according to EN ISO 13849-1 and EN 62061
• UL approval / E256710

Technical data - mechanical design

Size (flange)

• ø105 mm

Shaft type

• ø16 mm (blind hollow shaft)
• ø17 mm (cone shaft 1:10)

Admitted shaft load

• ≤250 N axial|≤400 N radial

Motor shaft tolerance

• ±0,2 mm axial (≤6000 rpm)|±0,03 mm axial (>6000 rpm)

Protection DIN EN 60529

• IP 66

Operating speed

• ≤10000 rpm (mechanical)

Operating torque typ.

• 6 Ncm

Rotor moment of inertia

• 180 gcm²

Material

• Housing: aluminium die-cast
• Shaft: stainless steel

Operating temperature

• -20...+85 °C

Resistance

• IEC 60068-2-6 Vibration 10 g, 10-2000 Hz
• IEC 60068-2-27 Shock 100 g, 6 ms

Corrosion protection

• IEC 60068-2-52 Salt mist
• Complies to ISO 12944-5:1998 Protective paint systems (C4)

Explosion protection

• II 3 G Ex nA IIC T4 Gc (gas)
• II 3 D Ex tc IIIC T135°C Dc (dust)

Connection

• Terminal box
• Terminal cover

Weight approx.

• 1,8 kg
