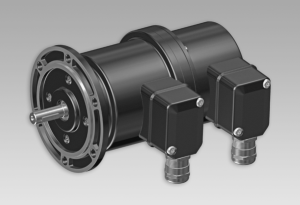

Incremental encoders - combination POG 86 G

Technical data

Technical data - electrical ratings

Voltage supply

• 9...30 VDC
• 5 VDC ±5 %

Consumption w/o load

• ≤100 mA

Pulses per revolution

• 500 … 5000

Phase shift

• 90 ° ±20°

Duty cycle

• 45…55 % (40...60 % >3072 pulses per revolution)

Reference signal

• Zero pulse, width 90°

Output frequency

• ≤120 kHz|≤300 kHz (on request)

Output signals

• K1, K2, K0 + inverted
• Error output (option EMS)

Output stages

• HTL-P (power linedriver)
• TTL/RS422

Sensing method

• Optical

Interference immunity

• EN 61000-6-2

Emitted interference

• EN 61000-6-3

Approval

• CE
• UL/CSA approval / E256710

Technical data - mechanical design

Size (flange)

• ø115 mm

Shaft type

• ø11 mm solid shaft

Admitted shaft load

• ≤250 N axial|≤350 N radial

Flange

• EURO flange B10

Protection DIN EN 60529

• IP 56

Operating speed

• ≤12000 rpm (mechanical)

Operating torque typ.

• 2 Ncm

Rotor moment of inertia

• 200 gcm²

Material

• Housing: aluminium, coated
• Shaft: stainless steel

Operating temperature

• -40...+100 °C
• -25...+100 °C (>3072 pulses per revolution)

Resistance

• IEC 60068-2-6 Vibration 10 g, 10-2000 Hz
• IEC 60068-2-27 Shock 300 g, 1 ms

Corrosion protection

• IEC 60068-2-52 Salt mist
• Complies to ISO 12944-5:1998 Protective paint systems (C4)

Explosion protection

• II 3 G Ex nA IIC T4 Gc (gas)
• II 3 D Ex tc IIIB T135°C Dc (dust)

Connection

• 2x terminal box

Weight approx.

• 2 kg
