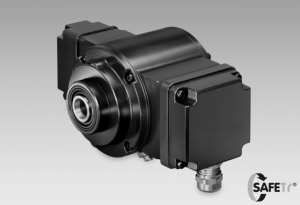

Incremental encoders - combination HOG 10-DSL.R

Technical data

Technical data - electrical ratings

Voltage supply

• 15...30 VDC

Consumption w/o load

• ≤200 mA

Technical data - electrical ratings (encoder)

Pulses per revolution

• 512 … 2500

Phase shift

• 90 ° ±20°

Duty cycle

• 40…60 %

Reference signal

• Zero pulse, width 90°

Output frequency

• ≤120 kHz

Output signals

• K1, K2, K0 + inverted

Output stages

• HTL
• TTL/RS422

Sensing method

• Optical

Technical data - electrical ratings (speed switches)

Interface

• RS485

Switching accuracy

• 2 % (or Digit)

Switching outputs

• 3 outputs, speed control

Output switching capacity

• 12 VDC; ≤40 mA

Switching delay time

• ≤40 ms

Technical data - mechanical design

Size (flange)

• ø105 mm

Shaft type

• ø16 mm (blind hollow shaft)

Admitted shaft load

• ≤450 N axial|≤ N radial

Protection DIN EN 60529

• IP 66

Speed (n)

• ≤6000 U/min

Range of switching speed (ns)

• Pulses = 512: ±16...6000 rpm
• Pulses = 1024: ±8...6000 rpm
• Pulses = 2048: ±4...3500 rpm
• Pulses = 2500: ±3...2900 rpm

Operating torque

• ≤2 Ncm

Rotor moment of inertia

• 340 gcm²

Material

• Housing: aluminium
• Shaft: stainless steel

Operating temperature

• -30...+85 °C

Resistance

• IEC 60068-2-6 Vibration 10 g, 10-2000 Hz
• IEC 60068-2-27 Shock 200 g, 6 ms

Corrosion protection

• IEC 60068-2-52 Salt mist
• Complies to ISO 12944-5:1998 Protective paint systems (C4)

Explosion protection

• II 3 G Ex nA IIC T4 Gc (gas)
• II 3 D Ex tc IIIC T135°C Dc (dust)

Connection

• Terminal box

Weight approx.

• 3,1 kg

Interference immunity

• EN 61000-6-2

Emitted interference

• EN 61000-6-3

Approval

• CE
