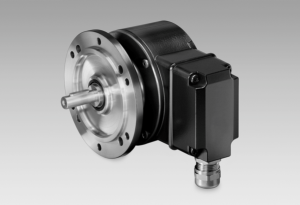

Sine encoders POGS 90

Technical data

Technical data - electrical ratings

Voltage supply

• 5 VDC ±10 %
• 9...30 VDC

Consumption w/o load

• ≤90 mA

Sinewave cycles per turn

• 720 … 5000

Phase shift

• 90 °

Reference signal

• Zero pulse, width 90°

Sensing method

• Optical

Output signals

• K1, K2, K0 + inverted

Output stages

• SinCos 1 Vpp

Difference of SinCos amplitude

• ≤20 mV

Harmonics typ.

• -50 dB

DC offset

• ≤20 mV

Bandwidth

• 250 kHz (-3 dB)

Interference immunity

• EN 61000-6-2

Emitted interference

• EN 61000-6-3

Approval

• CE
• UL approval / E256710

Technical data - mechanical design

Size (flange)

• ø115 mm

Shaft type

• ø11 mm solid shaft

Admitted shaft load

• ≤250 N axial|≤350 N radial

Flange

• EURO flange B10

Protection DIN EN 60529

• IP 66

Operating speed

• ≤10000 rpm (mechanical)

Operating torque typ.

• 2 Ncm

Rotor moment of inertia

• 320 gcm²

Material

• Housing: aluminium die-cast alloy and stainless steel
• Shaft: stainless steel

Operating temperature

• -20...+85 °C

Resistance

• IEC 60068-2-6 Vibration 10 g, 10-2000 Hz
• IEC 60068-2-27 Shock 100 g, 11 ms

Corrosion protection

• IEC 60068-2-52 Salt mist
• Complies to ISO 12944-5:1998 Protective paint systems (C4)

Explosion protection

• II 3 G Ex nA IIC T4 Gc (gas)
• II 3 D Ex tc IIIC T135°C Dc (dust)

Connection

• Terminal box

Weight approx.

• 1,5 kg
