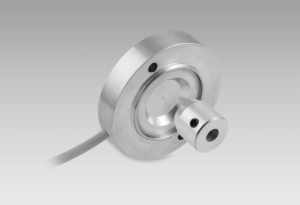

Absolute encoders EAM500 analog

Technical data

Technical data - electrical ratings

Voltage supply

• 8...30 VDC
• 12...30 VDC
• 5 VDC ±10 %

Reverse polarity protection

• Yes (8...30 VDC / 12...30 VDC)

Short-circuit proof

• Yes (8...30 VDC / 12...30 VDC)

Consumption typ.

• 22 mA (24 VDC, 12 mA lout, w/o load, current output)
• 10 mA (24 VDC, w/o load, voltage output)
• 8 mA (5 VDC, w/o load, voltage output)

Initializing time

• ≤20 ms after power on

Interface

• Analog 0...10 V / 0.5...4.5 V / 4...20 mA / Resolution: 12 bit

Function

• Singleturn

Measuring range

• 30°...360°
• See part number

Absolute accuracy

• ±1,8 ° (+25 °C)

Sensing method

• Magnetic

Interference immunity

• DIN EN 61000-6-2

Emitted interference

• DIN EN 61000-6-3

Technical data - mechanical design

Size (flange)

• ø50 mm

Shaft type

• ø6 mm (magnet rotor bore)
• M7 screw

Axial tolerance

• 1 … 3 mm

Radial tolerance

• ±0,8 mm

Protection DIN EN 60529

• IP 67

Operating speed

• ≤120 rpm

Material

• Housing: aluminium
• Magnet rotor: aluminium

Operating temperature

• -40...+85 °C

Service life

• No limitation

Resistance

• DIN EN 60068-2-6 Vibration 20 g, 10-2000 Hz
• DIN EN 60068-2-27 Shock 50 g, 11 ms

Weight approx.

• 53 g

Connection

• Cable 0.3 m, radial
