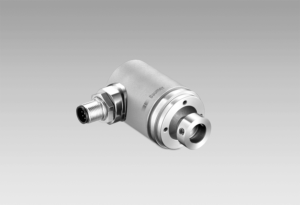

Absolute encoders EAM360R - Kit analog - MAGRES

Technical data

Technical data - electrical ratings

Voltage supply

• 8...30 VDC
• 14...30 VDC

Reverse polarity protection

• Yes

Consumption typ.

• 20 mA (24 VDC, w/o load)

Initializing time

• ≤170 ms after power on

Response time

• < 1 ms

Interface

• Analog 0...10 V / 0.5...4.5 V / 4...20 mA / Resolution: 12 bit

Function

• Multiturn
• Singleturn

Teach range

• 5°...359.9° (singleturn)
• 5°...32767 turns (multiturn)

Absolute accuracy

• ±0,15 ° (+20 ±15 °C)
• ±0,25 ° (-40...+85 °C) sensor (see info working distance)

Accuracy analog output

• ±0.5 % of whole measuring range (-40...+85 °C)

Sensing method

• Magnetic

Interference immunity

• DIN EN 61000-6-2
• ISO 11452-2:2012* / -5:2002*
• ISO 7637-2:2011*
• ISO 10605:2008 + Amd 1:2014 (CD ±8 kV / AD ±15 kV)
• * Severity level according to ECE R10 (Rev. 4)

Emitted interference

• DIN EN 61000-6-4 CISPR 25:2008 (30..1000 MHz)
• ISO 7637-2:2011*
• * Severity level according to ECE R10 (Rev. 4)

Programmable parameters

• Measuring range teachable

Diagnostic function

• DATAVALID

Factory setting

• 360° and 10 revolutions (other on request)

Technical data - mechanical design

Size (flange)

• ø36 mm

Shaft type

• ø6 mm (magnet bore)
• ø8 mm (magnet bore)
• ø12 mm (magnet bore)

Protection DIN EN 60529

• IP 67

Operating speed

• ≤6000 rpm

Working distance

• 1,1 ±0.9 mm axial / ≤0.3 mm eccentricity

Material

• Housing: steel, powder-coated
• Flange: aluminium

Corrosion protection

• IEC 60068-2-52 Salt mist
• Complies to ISO 12944-5:1998 Protective paint systems (C5-M)

Operating temperature

• -40...+85 °C (see general information)

Relative humidity

• 95 %

Resistance

• DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz
• DIN EN 60068-2-27 Shock 500 g, 1 ms

Weight approx.

• 170 g

Connection

• Flange connector M12, 5-pin
• Cable 2 m

Instruction

• The applicable application note regarding EN13849 conformity must be requested.
