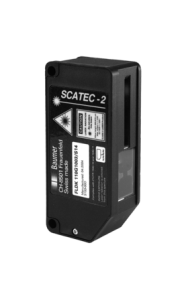

Copy counters SCATEC-2 FLDK 110G1006/S14

Technical data

general data

measuring distance Sd

• 0 … 120 mm

optimum operating distance

• 100 mm

counting rate

• < 600000 copies/h

object speed

• < 5 m/sec

sensitivity

• single sheet/edge thickness 0,25 mm

sync. input

• no

measuring point

• visible red laser line 3 mm

light source

• pulsed red laser diode

wave length

• 670 nm

laser class

• 2

edge indicator

• LED yellow

power on indication

• LED green

false pulse suppression

• on/off switchable

electrical data

voltage supply range +Vs

• 10 … 30 VDC

current consumption max. (no load)

• 180 mA

output circuit

• push-pull

output pulse length

• 5 / 10 ms selectable

short circuit protect
