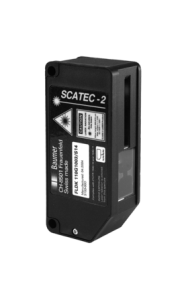

Copy counters SCATEC-2 FLDK 110G1003/S14

Technical data

general data

measuring distance Sd

• 0 … 60 mm

optimum operating distance

• 40 mm

counting rate

• < 600000 copies/h

object speed

• < 5 m/sec

object cycle distance

• > 1 mm

sensitivity

• single sheet/edge thickness 0,2 mm

sync. input

• no

measuring point

• visible red laser line 2 mm

light source

• pulsed red laser diode

wave length

• 670 nm

laser class

• 2

edge indicator

• LED yellow

power on indication

• LED green

false pulse suppression

• on/off switchable

sensitivity adjustment

• high/low switchable

electrical data

voltage supply range +Vs

• 10 … 30 VDC

current consumption max. (no load)

• 180 mA

output circuit

• push-pull

output pulse length

• 5 / 10 / 15 / 20 ms selectable

short circuit protection

• yes

reverse polarity protection

• yes

mechanical data

width / diameter

• 30 mm

type

• rectangular

housing material

• PA 6

connector base (main connector)

• M12 x 1, 5 pin

front (optics)

• glass

ambient conditions

operating temperature

• 0 … +50 °C

protection class

• IP 54
