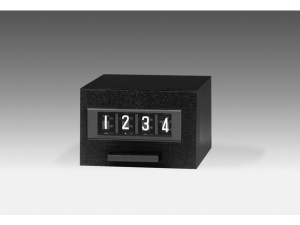

Totalizers F 102

Technical data

Technical data - electrical ratings

Voltage supply

• 24/110 VAC ±10 % (50/60 Hz)
• 230 VAC +6/-10 % (50/60 Hz)
• 24 VDC ±10 %

Residual ripple

• <48 %

Nominal frequency

• 50 / 60 Hz

Power consumption

• 2,3 W
• 5,5 VA

Standard DIN EN 61010‑1

• Protection class II
• Overvoltage category II
• Pollution degree 2

Emitted interference

• DIN EN 61000-6-4

Interference immunity

• DIN EN 61000-6-2

Technical data - mechanical design

Ambient temperature

• 0...+45 °C

Storage temperature

• -20...+70 °C

Relative humidity

• 80 % non-condensing

Protection DIN EN 60529

• IP 41

Housing type

• Built-in housing

Connection

• Pin connector D = 1.5 mm

Mounting type

• Rear center screw mount

Dimensions W x H x L

• 32 x 21.5 x 59 mm

Cutout dimensions

• 33 x 22 mm

Mounting depth

• 74 mm

Weight approx.

• 75 g

Material

• Housing: Hostaform POM, black
