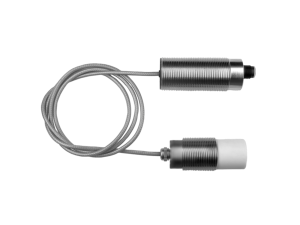

Capacitive proximity sensors CFAH 30P3200/S14

Technical data

general data

special type

• sensor for high temperatures

nominal sensing distance Sn

• 15 mm

mounting type

• non-flush

temperature drift

• ± 16 %

output indicator

• LED

inline amplifier

operating temperature

• -25 … +75 °C

protection class

• IP 65

field of application

detection of non-conductive media

• yes

fill level detection through container

• no

liquids in direct contact

• yes

object detection / bulk goods

• no

electrical data

voltage supply range +Vs

• 10 … 35 VDC

current consumption max. (no load)

• 15 mA

output circuit

• PNP break function (NC)

output current

• < 200 mA

voltage drop Vd

• < 2,5 VDC

switching frequency

• < 50 Hz

short circuit protection

• yes

reverse polarity protection

• yes

mechanical data

type

• cylindrical threaded

housing material

• V2A/PTFE

dimension

• 30 mm

housing length

• 65 mm

connection types

• connector M12

ambient conditions

operating temperature

• -40 … +200 °C

protection class

• IP 67
