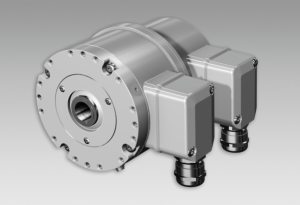

Incremental encoders - combination HOG 86E-FSL

Technical data

Technical data - electrical ratings

Interference immunity

• EN 61000-6-2

Emitted interference

• EN 61000-6-3

Technical data - electrical ratings (encoder)

Voltage supply

• 9...30 VDC
• 5 VDC ±5 %

Consumption w/o load

• ≤100 mA

Pulses per revolution

• 500 … 5000

Phase shift

• 90 ° ±20°

Duty cycle

• 45…55 % (40...60 % >3072 pulses per revolution)

Reference signal

• Zero pulse, width 90°

Output frequency

• ≤120 kHz
• ≤300 kHz (on request)

Output signals

• K1, K2, K0 + inverted

Output stages

• HTL-P (power linedriver)
• TTL/RS422

Sensing method

• Optical

Shaft insulation

• 2,8 kV

Transmission length

• ≤350 m at 100 kHz (HTL-P)
• ≤550 m at 100 kHz (TTL)

Technical data - electrical ratings (centrifugal switch)

Switching accuracy

• 4 % (Δn = 2 rpm/s);
• 20 % (Δn = 1500 rpm/s)

Switching deviation

• ≤3 % (cw-ccw rotation)

Switching hysteresis

• 40 % of switching speed

Switching outputs

• 1 output, speed control

Output switching capacity

• ≤6 A / 230 VAC
• ≤1 A / 125 VDC

Minimum switching current

• 50 mA

Technical data - mechanical design

Size (flange)

• ø105 mm

Shaft type

• ø16 mm (blind hollow shaft)
• ø17 mm (cone shaft 1:10)

Admitted shaft load

• ≤350 N axial
• ≤450 N radial

Protection DIN EN 60529

• IP 66

Speed (n)

• ≤1,25 · ns

Range of switching speed (ns)

• 850...4500 rpm (Δn = 2 rpm/s)

Operating torque

• ≤6 Ncm

Rotor moment of inertia

• 200 gcm²

Motor shaft tolerance

• ±0,2 mm radial

Material

• Housing: aluminium die-cast
• Shaft: stainless steel

Operating temperature

• -40...+100 °C
• -25...+100 °C (>3072 pulses per revolution)

Resistance

• IEC 60068-2-6 Vibration 5 g, 10-2000 Hz
• IEC 60068-2-27 Shock 50 g, 11 ms

Corrosion protection

• IEC 60068-2-52 Salt mist

Connection

• 2x terminal box

Weight approx.

• 1,7 kg

Approval

• CE
• UL/CSA approval / E256710
