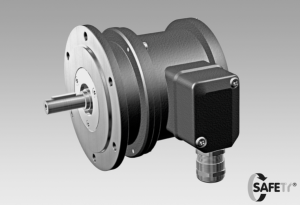

Incremental encoders - combination HOG 86-DSL

Technical data

Technical data - electrical ratings

Voltage supply

• 15...30 VDC

Consumption w/o load

• ≤200 mA

Interference immunity

• EN 61000-6-2

Emitted interference

• EN 61000-6-3

Approval

• CE

Technical data - electrical ratings (encoder)

Pulses per revolution

• 512 … 2500

Phase shift

• 90 ° ±20°

Duty cycle

• 45…55 %

Reference signal

• Zero pulse, width 90°

Output frequency

• ≤120 kHz

Output signals

• K1, K2, K0 + inverted

Output stages

• HTL-P (power linedriver)
• TTL/RS422

Sensing method

• Optical

Shaft insulation

• 2,8 kV

Transmission length

• ≤350 m at 100 kHz (HTL-P)|≤550 m at 100 kHz (TTL)

Technical data - electrical ratings (speed switches)

Interface

• RS485

Switching accuracy

• 2 % (or Digit)

Switching outputs

• 3 outputs, speed control

Output switching capacity

• 12 VDC; ≤40 mA

Switching delay time

• ≤40 ms

Technical data - mechanical design

Size (flange)

• ø99 mm

Shaft type

• ø16 mm (blind hollow shaft)

Admitted shaft load

• ≤350 N axial|≤450 N radial

Protection DIN EN 60529

• IP 66

Speed (n)

• ≤6000 U/min

Range of switching speed (ns)

• Pulses = 512: ±16...6000 rpm
• Pulses = 1024: ±8...6000 rpm
• Pulses = 2048: ±4...3500 rpm
• Pulses = 2500: ±3...2900 rpm

Operating torque

• ≤6 Ncm

Rotor moment of inertia

• 160 gcm²

Motor shaft tolerance

• ±0,2 mm radial

Material

• Housing: aluminium, coated
• Shaft: stainless steel

Operating temperature

• -30...+85 °C

Resistance

• IEC 60068-2-6 Vibration 15 g, 10-2000 Hz
• IEC 60068-2-27 Shock 250 g, 6 ms

Corrosion protection

• IEC 60068-2-52 Salt mist
• Complies to ISO 12944-5:1998 Protective paint systems (C4)

Connection

• 2x terminal box

Weight approx.

• 1,4 kg
