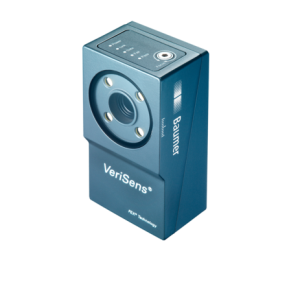

Vision sensors VS ID100M03W16RP

Technical data

general data

resolution

• 752 × 480 px

sensor type

• 1/3″ CMOS, monochrome

illumination

• integrated, LED white

LED class

• risk group 1 (low risk, EN 62471:2008)

high-resolution mode

• max. 50 inspections per second

object distance min.

• 70 mm

number of jobs (products)

• ≤ 255

features per job

• 32

signal processing

• Baumer FEX^® 3.5

defect image memory

• 32

lens

• 16 mm

electrical data

voltage supply range +Vs

• 18 … 30 V DC

power consumption

• typical 5 W (I_max = 1 A at 24 V)

digital inputs

• 5 inputs (8 … 30 V)
• trigger
• job selection
• external teach-in
• encoders (CH-A, CH-B) 500 kHz

digital outputs

• 3 outputs (PNP)
• Pass / Fail
• Flash Sync
• Alarm
• Camera Ready
• Output Enable

initial setup

• Ethernet (10BASE-T / 100BASE-TX)

process interface

• TCP/UDP (Ethernet)
• RS485

visualization

• web interface

mechanical data

width

• 53 mm

height

• 99,5 mm

depth

• 38 mm

material

• housing: aluminum
• cover glass: PMMA

weight

• ≤ 250 g

environmental conditions

operating temperature

• +5 … +50 °C

storage temperature

• -20 … +70 °C

case temperature

• max. +50 °C

humidity

• 0 … 90 % (non-condensing)

protection class

• IP 67

vibration load

• IEC 60068-2-6
• IEC 60068-2-64

mechanical shock resistance

• EN 60068-2-27

code types

barcode

• 2/5 Industrial
• 2/5 Interleaved
• Codabar
• Code 39
• Code 93
• Code 128
• PharmaCode
• EAN 8
• EAN 13
• UPC-A
• UPC-E
• GS1 DataBar
• GS1 128

matrix code

• DataMatrix (ECC 200)
• GS1-DataMatrix
• QR-Code
• PDF417

feature checks

identification

• barcode
• matrix code

conformity

conformity

• CE
• KC (R-REI-BkR-VeriSens-RP)
• RoHS

non-volatile memory

flash memory size

• 256 Mbit Flash S29GL256P10FFI010
