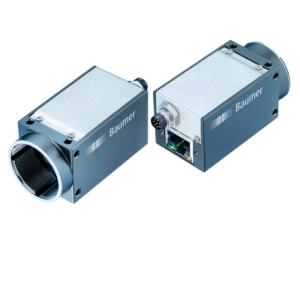

CX series VCXG-02C

Technical data

sensor information

sensor

• ON Semiconductor PYTHON300

resolution

• 640 × 480 px

exposure time

• 0,02 … 1000 ms

pixel size

• 4.8 × 4.8 µm

shutter type

• Global shutter

sensor type

• 1/4″ CMOS

acquisition formats

image formats, interface frame rate max.

• Full Frame, 640 × 480 px, max. 403 fps
• Binning 2×2, 320 × 240 px, max. 595 fps
• Binning 2×1, 320 × 480 px, max. 595 fps
• Binning 1×2, 640 × 240 px, max. 595 fps

image formats, aquisition frame rate max. (Burst Mode)

• Full Frame, 640 × 480 px, max. 595 fps

pixel formats

• BayerRG8
• BayerRG10
• Mono8
• Mono10
• RGB8
• BGR8

image preprocessing

analog controls

• Gain (0 … 12 dB)
• Offset (0 … 63 LSB 10 Bit)

color models

• Mono
• Raw Bayer
• RGB

camera features

internal buffer

• 15 MB

synchronization

• free running
• trigger

trigger sources

• Hardware
• Software
• ActionCommand

trigger delay

• 0 … 2 sec, tracking and buffering of up to 256 trigger signals

interfaces and connectors

data interface

• Gigabit Ethernet, Transfer rate 1000 Mbits/sec, Fast Ethernet, Transfer Rate 100 Mbits/sec, Connector: 8P8C Modular Jack (RJ45), screwable type

process interface

• M8 / 8 pins (SACC-DSI-M8MS-8CON-M8-L180)

power supply

• M8 / 8 pins or PoE

mechanical data

material

• zinc die casting, nickel-plated, IP 40

lens mount

• C-mount

width

• 29 mm

height

• 29 mm

depth

• 49 mm

weight

• ≤ 120 g

electrical data

voltage supply range +Vs

• 12 … 24 V (externe Stromversorgung)|36 … 57 V (Power over Ethernet)

power consumption

• ca. 2,6 W @ 12 VDC und 403,0 fps
• ca. 3,2 W @ 48 VDC (PoE) und 403,0 fps

non-volatile memory

flash memory size

• 32 Mbit

environmental conditions

operating temperature

• +5 … +65 °C @ T = Messpunkt

humidity

• 10 … 90 % (non-condensing)

protection class

• IP 40

digital I/Os

lines

• 1 input line
• 1 output line
• 2 general purpose lines

conformity

conformity

• CE
• RoHS
• KC (MISP-REI-BKR-VCXG-13M)
