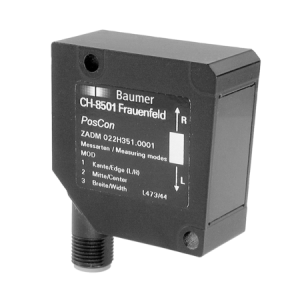

Edge sensors ZADM 023H151.0002

Technical data

general data

type

• measuring mode: edges, center, width

measuring field size

• 150 mm

measuring distance (to object)

• 200 mm

measuring frequency

• 500 Hz

resolution

• < 0,15 mm

smallest object recognizable

• 1,2 mm

linearity error relative

• < 0,3 %

light source

• pulsed infrared diode

wave length

• 880 nm

adjustment

• Teach-in

electrical data

response time

• < 2 ms

voltage supply range +Vs

• 15 … 28 VDC

current consumption max. (no load)

• 150 mA

output signal

• 4 ... 20 mA

switching output

• NPN

output function

• Out 1 / Alarm

output current

• < 100 mA

interface

• analog and RS 485

baud rate

• 19200, adjustable

reverse polarity protection

• yes, Vs to GND

mechanical data

width / diameter

• 23 mm

type

• rectangular

housing material

• die-cast zinc

front (optics)

• glass

connection types

• connector M12 8 pin, rotatable

ambient conditions

operating temperature

• 0 … +55 °C

protection class

• IP 67
