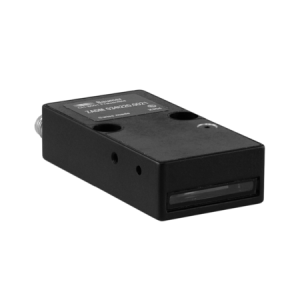

Edge sensors ParCon – ZADM 034I220.0021

Technical data

general data

type

• measuring mode: edges, width

measuring field size

• 22 mm

measuring range towards object

• 0 … 200 mm

measuring frequency

• 1100 Hz

resolution

• < 0,1 mm (S = 0 ... 150 mm)
• < 0,2 mm (S = 150 ... 200 mm)

repeat accuracy

• < 0,1 mm (S = 0 ... 150 mm)
• < 0,2 mm (S = 150 ... 200 mm)

smallest object recognizable

• 3 mm

linearity error

• -1,75 … 1,75 mm (S = 0 ... 200 mm)
• ± 1 mm (S = 50 ... 150 mm)

power on indication

• LED green

output indicator

• LED yellow

light source

• pulsed infrared diode

wave length

• 880 nm

electrical data

response time

• < 0,9 ms

voltage supply range +Vs

• 12 … 28 VDC

current consumption max. (no load)

• 120 mA

output circuit

• analog

output signal

• 4 ... 20 mA

reverse polarity protection

• yes, Vs to GND

short circuit protection

• yes

mechanical data

width / diameter

• 34 mm

type

• rectangular, front view

housing material

• aluminum

front (optics)

• glass

connection types

• connector M8 4 pin

ambient conditions

operating temperature

• 0 … +55 °C

protection class

• IP 67
