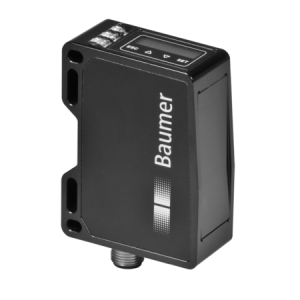

Light-section sensors PosCon – OXC7-X0250.II1250.TI

Technical data

general data

type

• measuring mode: center, diameter, limits left, right and top for round objects

version

• PosCon CM

measuring range (width)

• 75 … 125 mm

measuring range (distance)

• 150 … 250 mm

measuring frequency

• 450 Hz 1) 2)

resolution

• 10 … 40 µm 1) 3) 6)

repeat accuracy

• 10 … 20 µm 1) 3) 4) 6)

linearity error

• 35 … 60 µm 1) 3) 5) 6)

temperature drift

• ± 0,05 % Sde/K 1)

power on indication

• LED green

output indicator

• LED yellow / LED red

light source

• pulsed red laser diode

wave length

• 656 nm

laser class

• 1

optical peak power max.

• 3 mW

adjustment

• Touch Display, RS485

object type

• round

object diameter min.

• 30 mm

object diameter max.

• 130 mm

electrical data

response time / release time

• 7 ms 1) 2)

voltage supply range +Vs

• 15 … 28 VDC

current consumption max. (no load)

• 120 mA

output circuit

• analog and RS 485

output signal

• 4 ... 20 mA / 0 ... 10 VDC

switching output

• push-pull

output function

• Out 1 / Alarm

output current

• < 100 mA

baud rate

• 115200, adjustable

reverse polarity protection

• yes, Vs to GND

short circuit protection

• yes

mechanical data

width / diameter

• 26 mm

height / length

• 74 mm

depth

• 55 mm

type

• rectangular, front view

housing material

• aluminum

front (optics)

• glass

connection types

• connector M12 8 pin

weight

• 130 g

ambient conditions

ambient light immunity

• < 25 kLux

operating temperature

• -10 … +50 °C

protection class

• IP 67

storage temperature

• -25 … +75 °C

vibration (sinusoidal)

• IEC 60068-2-6:2008
• 1.5 mm p-p at f = 10 - 57 Hz, 10 cycles per axis
• 10 g at f = 58 - 2000 Hz, 10 cycles per axis

shock (semi-sinusoidal)

• IEC 60068-2-27:2009
• 50 g / 11 ms resp. 100 g / 6 ms, 10 jolts per axis and direction
• 100 g / 2 ms, 5000 jolts per axis and direction
