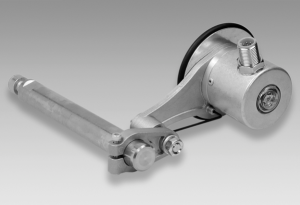

Incremental encoders MA20

Technical data

Technical data - electrical ratings

Voltage supply

• 4.75...30 VDC

Consumption typ.

• 100 mA (24 VDC, w/o load)

Pulses per revolution

• 100 … 25000

Sensing method

• Optical

Output frequency

• ≤300 kHz

Output signals

• A 90° B

Output stages

• Push-pull antivalent, short-circuit proof (HTL)

Interference immunity

• DIN EN 61000-6-2

Emitted interference

• DIN EN 61000-6-3

Technical data - mechanical design

Size (flange)

• ø40 mm

Shaft type

• ø6 mm solid shaft

Protection DIN EN 60529

• IP 64

Operating speed

• ≤3000 rpm

Operating torque typ.

• 0,0075 Nm (3000 rpm / 20 °C)

Material

• Encoder housing: aluminium
• Measuring arm: Aluminium/steel
• Measuring wheel: Aluminium/NBR

Operating temperature

• -20...+85 °C

Relative humidity

• 95 % non-condensing

Resistance

• DIN EN 60068-2-6 Vibration 10 g, 10-200 Hz
• DIN EN 60068-2-27 Shock 50 g, 11 ms

Connection

• Connector M12, 8-pin
• Cable 2 m

Weight approx.

• 100 g
