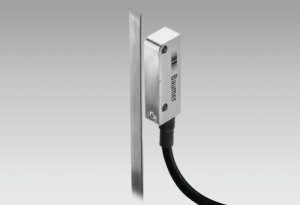

Linear encoders without bearings incremental MIL10

Technical data

Technical data - electrical ratings

Short-circuit proof

• Yes

Initializing time

• ≤50 ms after power on (see general informations)

Resolution

• 5 µm (4-times evaluation)
• 10 µm (4-times evaluation)
• 25 µm (4-times evaluation)

Interpolation

• 20‑fold
• 50‑fold
• 100‑fold

Output signals

• A+, B+, R+, A-, B-, R-

Reference signal

• Index signal, width 90°

Output frequency

• ≤350 kHz

System accuracy

• ±(0.02 mm + 0.04 mm x magnetic tape length (m))

Duty cycle

• 40…60 %

Sensing method

• Magnetic

Output stages

• HTL/push-pull
• TTL/RS422

Interference immunity

• DIN EN 61000-6-2

Emitted interference

• DIN EN 61000-6-4

Approval

• CE
• UL

Technical data - electrical ratings (HTL)

Voltage supply

• 10...30 VDC

Reverse polarity protection

• Yes

Consumption typ.

• 20 mA (w/o load)

Technical data - electrical ratings (TTL)

Voltage supply

• 5 VDC ±5 %

Consumption typ.

• 30 mA (w/o load)

Recommended cable termination

• On control side each channel pair 120 Ohm

Technical data - mechanical design

Dimensions (sensor head)

• 10 x 15 x 45.5 mm

Protection DIN EN 60529

• IP 66
• IP 67

Movement speed

• <5 m/s (resolution 5 µm)
• <10 m/s (resolution 10 µm)
• <25 m/s (resolution 25 µm)

Working distance

• 0,1 … 0,6 mm

Material

• Housing: zinc diecast, plated

Operating temperature

• -40...+85 °C

Relative humidity

• EN 60068-2-78:2010 EN 60068-2-30:2005 93 % condensation permitted

Resistance

• DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz
• DIN EN 60068-2-27 Shock 500 g, 6 ms

Weight approx.

• 130 g

Connection

• Cable 2 m
• Cable 0.3 m with connector M12
