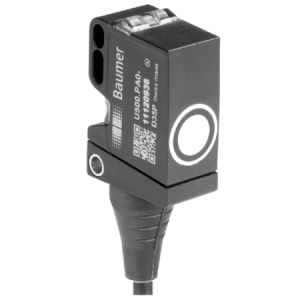

Ultrasonic distance measuring sensors U500.DA0-UA1B.72CU

Technical data

general data

scanning range Sd

• 100 … 1000 mm

scanning range close limit Sdc

• 100 … 1000 mm

scanning range far limit Sde

• 100 … 1000 mm

repeat accuracy

• < 0,5 mm

resolution

• < 0,3 mm

response time ton

• < 80 ms

release time toff

• < 80 ms

temperature drift

• < 2 % of distance to target So

power-up drift

• compensated after 15 min.

sonic frequency

• 220 kHz

adjustment

• qTeach

alignment aid

• light indicator flashing

light indicator

• LED yellow

power on indication

• LED green

alignment measuring axis

• < 2°

electrical data

voltage supply range +Vs

• 12 … 30 VDC

current consumption typ.

• 38 mA

output circuit

• voltage output

output signal

• 0 ... 10 V / 10 ... 0 V

residual ripple

• < 10 % Vs

short circuit protection

• yes

reverse polarity protection

• yes, Vs to GND

mechanical data

type

• rectangular

housing material

• plastic (ASA, PMMA)

width / diameter

• 18 mm

height / length

• 45 mm

depth

• 32 mm

connection types

• cable PUR 4 x 0,25, 2 m

ambient conditions

operating temperature

• -25 … +65 °C

storage temperature

• -40 … +75 °C

protection class

• IP 67
