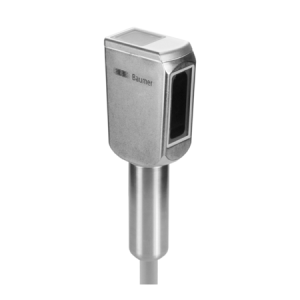

Distance sensors FADH 14U4470/KS34A/IO

Technical data

general data

measuring distance Sd

• 50 … 400 mm

special type

• hygienic design

adjustment

• IO-Link

Teach-in range min.

• > 20 mm

power on indication

• LED green

soiled lens indicator

• LED red

resolution

• 0,1 … 1 mm

linearity error

• ± 4 mm

light source

• pulsed point source LED

wave length

• 660 nm

beam type

• point

beam diameter

• 8 mm

temperature drift

• < 0,1 % Sde/K

approvals/certificates

• Ecolab
• EHEDG

electrical data

response time / release time

• < 3 ms

voltage supply range +Vs

• 14 … 26 VDC

current consumption max. (no load)

• 80 mA

output circuit

• analog

output signal

• 0 ... 10 VDC

load resistance (analog U)

• > 100 kOhm

output current

• < 100 mA

alarm output

• push-pull

short circuit protection

• yes

reverse polarity protection

• yes, Vs to GND

mechanical data

width / diameter

• 19,6 mm

height / length

• 52,2 mm

depth

• 34,3 mm

type

• rectangular

housing material

• stainless steel 1.4404 (V4A)

front (optics)

• PMMA

connection types

• flylead connector M12, L=300 mm

ambient conditions

operating temperature

• 0 … +50 °C

protection class

• IP 68/69K & proTect+
