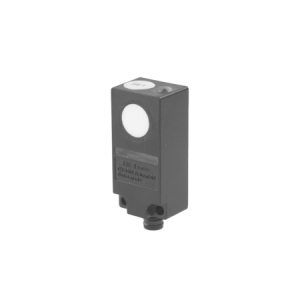

Ultrasonic through beam sensors UEDK 20P6103/S35A

Technical data

general data

emitter / receiver

• receiver

scanning range Sd

• 0 … 1000 mm

scanning range far limit Sde

• 0 … 1000 mm

object size (at Sd = 50 mm)

• > 2 cm²

hysteresis typ.

• 5 mm

repeat accuracy

• < 3 mm

response time ton

• < 5 ms

release time toff

• < 5 ms

adjustment

• Teach-in

alignment aid

• target indication flashing

output indicator

• LED green

electrical data

voltage supply range +Vs

• 15 … 30 VDC

current consumption max. (no load)

• 30 mA

output circuit

• PNP make function (NO)

output current

• < 200 mA

voltage drop Vd

• < 2 VDC

residual ripple

• < 10 % Vs

short circuit protection

• yes

reverse polarity protection

• yes

mechanical data

type

• rectangular

housing material

• polyester

width / diameter

• 20 mm

height / length

• 42 mm

depth

• 15 mm

connection types

• connector M8

ambient conditions

operating temperature

• 0 … +60 °C

protection class

• IP 67
