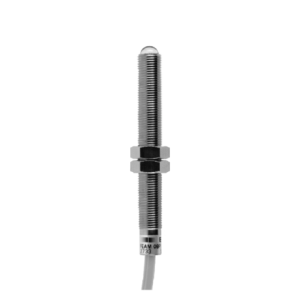

Through beam sensors FEAM 08P1002

Technical data

general data

type

• through beam sensor

emitter / receiver

• receiver

actual range Sb

• 2,5 m

nominal range Sn

• 3 m

alignment / soiled lens indicator

• flashing light indicator

light indicator

• LED red

sensitivity adjustment

• no

electrical data

response time / release time

• < 2,5 ms

voltage supply range +Vs

• 10 … 30 VDC

current consumption max. (no load)

• 24 mA

current consumption typ.

• 24 mA

voltage drop Vd

• < 2 VDC

output function

• light operate

output circuit

• PNP

output current

• < 100 mA

short circuit protection

• yes

reverse polarity protection

• yes

mechanical data

width / diameter

• 8 mm

height / length

• 59 mm

type

• cylindrical threaded

housing material

• brass nickel plated

front (optics)

• PC

connection types

• cable 3 pin, 2 m

ambient conditions

operating temperature

• -25 … +65 °C

protection class

• IP 65
