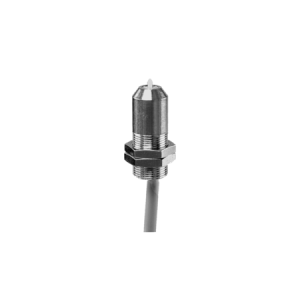

My-Com precision switches MY-COM A30/80

Technical data

general data

repeat accuracy

• < 0,001 mm

activating force

• 30 cN

mech. pre-run / overrun

• - / 1,5 mm approx.

measurement type

• contact with medium

direction of approach

• frontal

electrical data

DC voltage max.

• 15 VDC

switch. current DC max.

• 2 mA

AC voltage max.

• 24 VAC

switch. current AC max.

• 50 mA

output circuit

• break function (NC) mechanical

mechanical data

activating pin

• zirconium oxide ZrO2

housing material

• brass nickel plated

dimension

• 8 mm

type

• cylindrical threaded

housing length

• 20 mm

connection types

• cable, 80 cm

ambient conditions

operating temperature

• -20 … +75 °C

protection class

• IP 50
